High temperature ceramic adhesive

Jyalucem-20 is a high temperature adhesive specially designed for cementing, sealing and bonding ceramic to ceramic, ceramic to metal, ceramic to glass, glass to glass, glass to metals and refractories.

Jyalucem-20 is an alumina based inorganic ceramic adhesive cement which cures at low temperatures and has exceptional thermal shock resistance. As well as resistance to high temperatures of up to 1575^oC and high thermal conductivity, this cement has excellent bond strength, and when properly cured forms a hard surface.

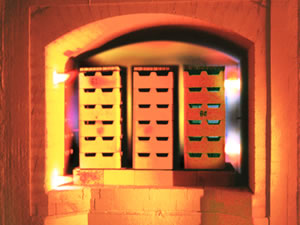

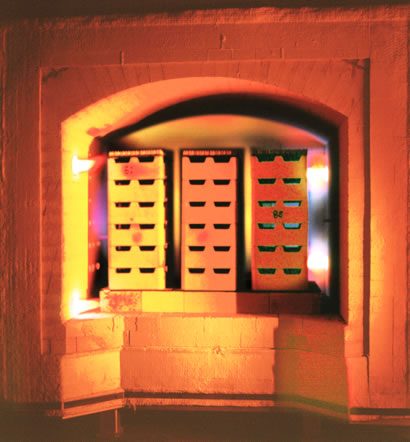

It is the ideal cement for tasks such as the potting of lamps into lamp housing and the lining of furnace doors and walls.

Advantages

• Excellent abrasion resistance
• Chemically resistant
• Cures at low temperatures
• High bond strength
• Seals most surfaces


main applications

• Potting of lamps into lamp housing
• Encapsulating resistor wires
• Encapsulating electrical heating elements
• Lining furnace doors and walls
• Potting elements into base

preparation

Like all our ceramic adhesive cements, Jyalucem-20 is very easy to apply and it seals most surfaces.

Mix with water in the ratio 4 parts powder to 1 part water by weight. Apply with suitable tool, such as spatula and allow to air dry at room temperature for 4 to 5 hours, then increase temperature to 200^oC slowly over 2-3 hours, and leave to cure at the same temperature for up to an hour.

Typical characteristics

Maximum Service temperature: 1575^oC
Co-efficient of Thermal Expansion: 7 -8 x 10^-6
Dielectric strength: 450 Volts/mm (at 21^o C)
Volume resistivity (Ohm-cm): 3 x 10¹¹
Thermal Conductivity W/m / ^oK: 10 - 12
