Alumina cement

Alucem HT2 is an inorganic alumina-based ceramic adhesive cement and is used to join, bond or fix to most surfaces such as ceramic, glass and metal quartz, as it offers a high bond strength and is very well known for its high temperature resistance properties.

Alucem HT 2 can resist temperatures in excess of 1500^oC, as well as having excellent electrical and mechanical properties.

Depending upon the area of application, it is purchased in two separate components, a fine dry powder and a liquid, which are mixed to form a coating which can be applied either as a thick or thin coatings.

This alumina cement is appropriate for use on any electrical applications, such as encapsulating electrical heating elements.

Advantages

• Excellent thermal conductivity
• Excellent electrical properties

• Excellent mechanical properties

• Excellent bonding strength


main applications

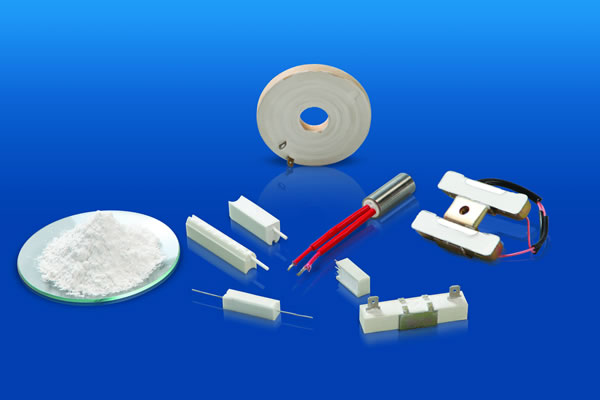

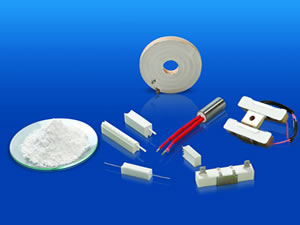

These alumina-based two-component, ambient temperature curing cements, are ideal for bonding, assembling, sealing and joining ceramic to metal, ceramic to ceramic, glass to ceramic, glass to glass, glass to metals, ceramic to quartz, etc.

• Fixing ceramic pyrometry tubes with metal sleeves for thermocouple assembly
• Potting electrical heating elements
• Bonding metal resistor elements
• Encapsulating high wattage / high heat generating electrical bulbs

preparation

Mix the powder and liquid in the ratio 1 part powder to 1 part liquid and apply using suitable tool. Leave to cure for 24 hours at room temperature.

Typical characteristics

Max. Service temperature : >1500^oC
CO-efficient of Thermal Expansion: 5 x 10^-6
Dielectric strength: 700 – 1000 Volts/mm (at 21^o C )
Volume resistivity (Ohm-cm) : > 10⁷
Thermal Conductivity W/m / ^oK : 3
